CPinno — Lifting System

Lifting Plate Socket

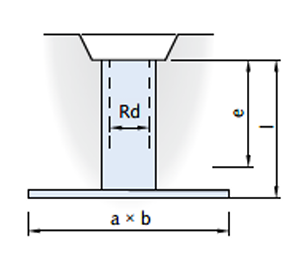

Lifting Plate Socket — Detail

Lifting Plate Socket

Part No.	Thread [Rd]	a [mm]	b [mm]	i [mm]	e [mm]	Spacing [mm]	Edge Distance [mm]
JPS12	12	25	35	30	22	350	175
JPS14	14	35	35	33	26	350	175
JPS16	16	35	50	36	30	500	250
JPS18	18	45	60	40	34	600	300
JPS20	20	60	60	47	38	600	300
JPS24	24	60	80	54	46	800	400
JPS30	30	80	100	72	58	1000	500
JPS36	36	100	100	84	67	1300	650

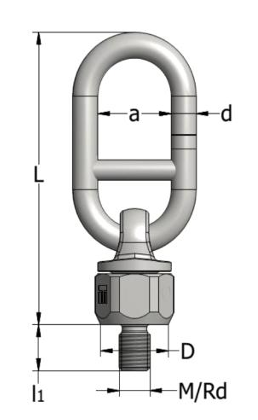

Swivel Eye — Detail

Swivel Eye

THS3-Rd	Part No.	Thread (RD)	Load Group[t]	Axial Load[kN]	L[mm]	a[mm]	d[mm]	D[mm]	l1[mm]
THS3-HD-Rd12	61706	12	1.3	13	124	34	11	30	17
THS3-HD-Rd16	61707	16	2.5	25	145	38	13	35	23
THS3-HD-Rd20	61708	20	4.0	40	169	45	15	44	28.5
THS3-HD-Rd24	62752	24	5.0	50	198	49	17	44	33.5
THS3-HD-Rd30	62753	30	7.5	75	230	60	20	59	44.5
THS3-HD-Rd36	62754	36	10.0	100	264	64	24	59	53.5
THS3-HD-Rd42	62755	42	12.5	125	285	68	26	75	57.5
THS3-HD-Rd52	60829	52	15.0	150	307	72	31	84	67.5

Threaded Wire

Threaded Wire

RLL Type And Load Class	Rd Thread	M Thread	Minimum Screw-In Depth [mm]	L[mm]	D[mm]	Φ[mm]	HL[mm]	H[mm]
RLL0.5	Rd 12x1,75	M12x1,75	22	22	30	6	133	155
RLL0.8	Rd 14x2,00	M14x2,00	25	25	35	7	130	155
RLL1.2	Rd 16x2,00	M16x2,00	27	27	38	8	138	165
RLL1.6	Rd 18x2,50	M18x2,50	34	34	45	9	156	190
RLL2.0	Rd 20x2,50	M20x2,50	35	35	47	10	180	215
RLL2.5	Rd 24x3,00	M24x3,00	43	43	57	12	212	255
RLL4.0	Rd 30x3,50	M30x3,50	56	56	68	16	244	300
RLL6.3	Rd 36x4,00	M36x4,00	67	67	81	18	293	360
RLL8.0	Rd 42x4,50	M42x4,50	80	80	95	20	350	430
RLL12.5	Rd 52x5,00	M52x5,00	97	97	117	26	433	530
RLL1.6-TYPE2	Rd 18x2,50	M18x2,50	34	33	43	9	90	132

↑
