CPinno — Lifting System

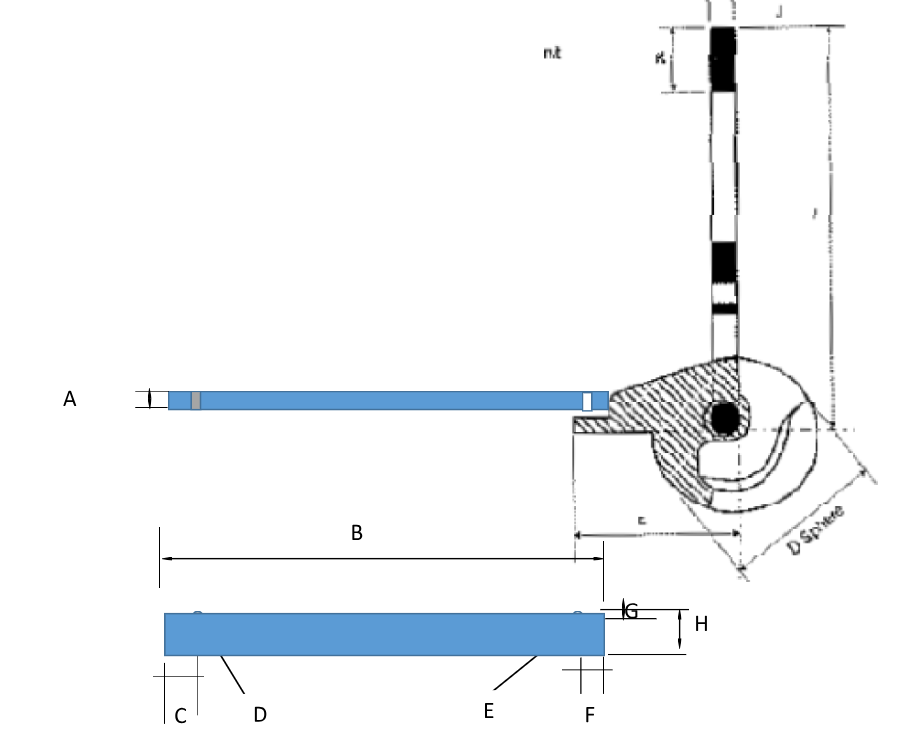

Lifting Clutch — Detail

Light Remote Lifting Clutches

Part No.	Description	Anchor Load Group [T]	Load Capacity [kN]
1LE-LR	Light Remote Lifting Clutch	1.3	13 kN
2LE-LR	Light Remote Lifting Clutch	2.5	25 kN
5LE-LR	Light Remote Lifting Clutch	5.0	50 kN
10LE-LR	Light Remote Lifting Clutch	10.0	100 kN

Clutches

Clutches

Part No.	Description	Anchor Load Group [T]	Load Capacity [kN]	Qty [Per Box]
1LE	Lifting Clutch	1.3	13 kN	ea
2LE	Lifting Clutch	2.5	25 kN	ea
5LE	Lifting Clutch	5.0	50 kN	ea
10LE	Lifting Clutch	10.0	100 kN	ea
20LE	Lifting Clutch	20.0	200 kN	ea
32LE	Lifting Clutch	32.0	320 kN	ea

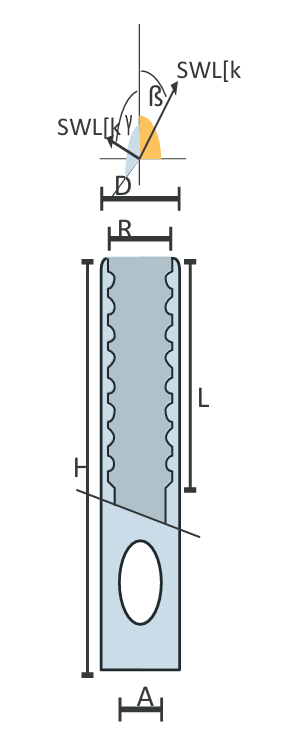

Lifting Socket — View 2

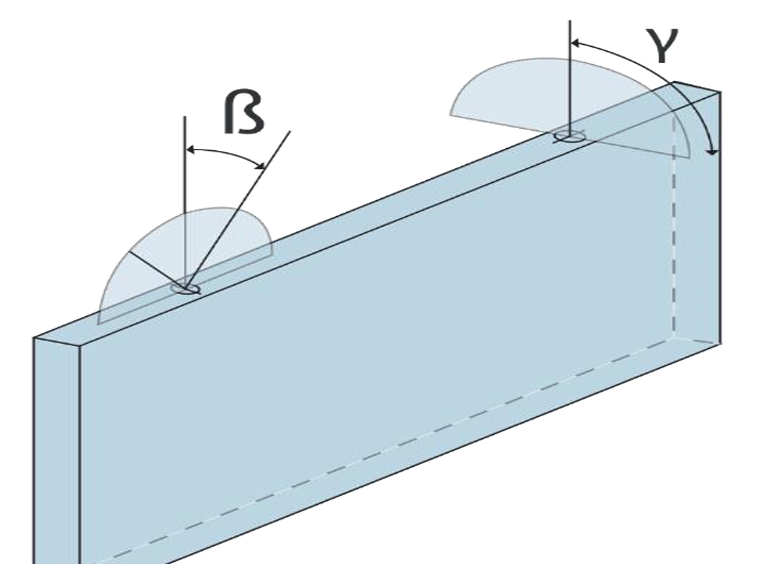

Lifting Socket — View 3

Lifting Socket

Part No.	Dimensions					Safe Working Loads (SWL) [kN]
Part No.	R [mm]	D [mm]	H [mm]	L [mm]	A [mm]	β = 0°–15°	γ = 15°–45°	γ = 0°–90°
JLS12	12	15.5	40	22	8	5	5	2.5
JLS14	14	18	47	25	10	8	8	4
JLS16	16	21.4	54	27	13	12	12	6
JLS18	18	22.3	65	34	13	16	16	8
JLS20	20	27	69	35	15	20	20	10
JLS24	24	31	78	43	18	25	25	12.5
JLS30	30	40	103	56	22	40	40	20
JLS36	36	47	125	68	27	63	63	31.5
JLS42	42	54	145	80	32	—	—	—
JLS52	52	67	195	97	40	—	—	—

↑
