Foot Anchor

Part No.	Qty / Box	Pallet Qty
1FA065	250	12 000
1FA120	150	7 200
2FA055	150	7 200
2FA075	100	4 800
2FA090	100	4 800
2FA120	70	3 360
2FA170	50	2 400
5FA095	40	1 920
5FA120	30	1 440
5FA240	20	960
7FA300	10	480
10FA115	20	960
10FA135	15	720

Swiftlift Anchor Part No.	Clutch Load Group	Min Element Thickness [mm]	Z-Permissible Loading [t]			Min Edge Distance [a*] [mm]	Min Wall Reinforcement	Additional Reinforcement (Diagonal Lift)
			Concrete Compressive Strength at Time of Lift				Min Wall Reinforcement	Horizontal Stirrup	Edge Reinforcement
			15 MPa	20 MPa	25 MPa		Both Wall Faces	Sling > 45°
1FA120	1.3	60	1.0	1.1	1.2	400	Mesh: 4Ø@100 c/c 126 mm²/m	1# Ø10 L=1100 B=40	2# Ø10 L=1800
		70	1.1	1.3	1.3
		80	1.3	1.3	1.3
1FA240		60	1.3	1.3	1.3	250
2FA140	2.5	120	1.6	1.8	2.0	400
		140	1.7	2.0	2.3
		160	1.9	2.2	2.5
2FA170		60	1.6	1.8	1.9	500
		80	1.9	2.1	2.2
		100	2.1	2.4	2.5
4FA210	4.0	100	**2.8/3.6	**3.1/3.9	**3.3/4.0	650	**Mesh 4Ø/5Ø @100 c/c 126/196 mm²/m	1# Ø12 L=1000 B=48	2# Ø10 L=1300
		120	**3.1/3.8	**3.4/4.0	**3.7/4.0
		140	**3.3/4.0	**3.7/4.0	**4.0/4.0
		160	**3.6/4.0	**4.0/4.0	**4.0/4.0
		180	**3.9/4.0	**4.0/4.0	**4.0/4.0
		200	**4.0/4.0	**4.0/4.0	**4.0/4.0
5FA240	5.0	100	**3.5/4.6	**3.9/4.9	**4.2/5.0	800	**Mesh 4Ø/5Ø @100 c/c 126/196 mm²/m	1# Ø12 L=1320 B=48	2# Ø12 L=1600
		120	**3.9/4.8	**4.2/5.0	**4.6/5.0
		140	**4.2/5.0	**4.6/5.0	**5.0/5.0
		160	**4.5/5.0	**5.0/5.0	**5.0/5.0
		180	**4.8/5.0	**5.0/5.0	**5.0/5.0
		200	**5.0/5.0	**5.0/5.0	**5.0/5.0
5FA340		100	5.0	5.0	5.0	500	Mesh 4Ø@100 c/c 126 mm²/m
5FA480		100	5.0	5.0	5.0	500	Mesh 4Ø@100 c/c 126 mm²/m
7FA300	7.5	140	**4.8/6.1	**5.3/6.6	**5.7/7.0	600	**Mesh 4Ø/5Ø @100 c/c 126/196 mm²/m	1# Ø16 L=1000 B=64	2# Ø12 L=2000
		160	**5.1/6.4	**5.7/7.0	**6.2/7.5
		180	**5.4/6.8	**6.1/7.4	**6.7/7.5
		200	**5.8/7.1	**6.5/7.5	**7.2/7.5
		220	**6.1/7.4	**6.9/7.5	**7.5/7.5
		250	**6.6/7.5	**7.5/7.5	**7.5/7.5
		300	**7.5/7.5	**7.5/7.5	**7.5/7.5
7FA540		120	7.5	7.5	7.5	800	Mesh 4Ø@100 c/c 126 mm²/m
10FA340	10.0	140	9.5	10.0	10.0	1000	Mesh 6Ø@100 c/c 283 mm²/m	1# Ø16 L=1200 B=64	2# Ø12 L=2200
10FA680	10.0	140	10.0	10.0	10.0	500	Mesh 6Ø@100 c/c 283 mm²/m	1# Ø16 L=1200 B=64	2# Ø12 L=2200
20FA500	20.0	160	20.0	20.0	20.0	1400	Mesh 10Ø@150 c/c 524 mm²/m	2# Ø25 L=2000 B=140	2# Ø16 L=3100
32FA700	32.0	220	32.0	32.0	32.0	1400	Mesh 10Ø@150 c/c 524 mm²/m	2# Ø25 L=2000 B=140	2# Ø16 L=4300

Anchor Load Group	Part No.	Length (L) [mm]	Min Edge Distance er [mm]	Min Spacing ez [mm]	Permissible Concrete Loading [t]
					Concrete Compressive Strength at Time of Lift [MPa]
					10	15	20	25	30	35
1.3	1FA035	35	120	240	0.55	0.68	0.78	0.88	0.96	1.04
	1FA045	45	150	300	0.77	0.95	1.10	1.23	1.30	1.30
	1FA055	55	180	360	1.02	1.25	1.30	1.30	1.30	1.30
	1FA065	65	213	426	1.30	1.30	1.30	1.30	1.30	1.30
	1FA085	85	270	540	1.30	1.30	1.30	1.30	1.30	1.30
	1FA120	120	375	750	1.30	1.30	1.30	1.30	1.30	1.30
	1FA240	240	735	1470	1.30	1.30	1.30	1.30	1.30	1.30
2.5	2FA055	55	186	372	1.07	1.31	1.51	1.69	1.85	2.00
	2FA065	65	216	432	1.34	1.64	1.89	2.12	2.50	2.50
	2FA075	75	246	492	1.63	1.99	2.30	2.50	2.50	2.50
	2FA090	90	291	582	2.09	2.50	2.50	2.50	2.50	2.50
	2FA120	120	381	762	2.50	2.50	2.50	2.50	2.50	2.50
	2FA170	170	531	1062	2.50	2.50	2.50	2.50	2.50	2.50
	2FA340	340	1041	2082	2.50	2.50	2.50	2.50	2.50	2.50
5.0	5FA075	75	255	510	1.72	2.10	2.43	2.72	2.98	3.21
	5FA095	95	315	630	2.36	2.89	3.34	3.78	4.27	4.73
	5FA120	120	390	780	3.25	4.11	4.98	5.00	5.00	5.00
	5FA150	150	480	960	4.75	5.00	5.00	5.00	5.00	5.00
	5FA170	170	540	1080	5.00	5.00	5.00	5.00	5.00	5.00
	5FA240	240	750	1500	5.00	5.00	5.00	5.00	5.00	5.00
	5FA480	480	1470	2940	5.00	5.00	5.00	5.00	5.00	5.00
7.5	7FA100	100	345	690	2.70	3.31	3.90	4.53	5.12	5.68
7.5	7FA120	120	405	810	3.44	4.43	5.38	6.24	7.05	7.50
10.0	10FA115	115	390	780	3.25	4.11	4.98	5.79	6.54	7.25
	10FA135	135	450	900	4.17	5.47	6.64	7.71	8.71	9.66
	10FA150	150	495	990	5.05	6.62	8.03	9.32	10.00	10.00
	10FA170	170	555	1110	6.34	8.32	10.00	10.00	10.00	10.00
	10FA340	340	1065	2130	10.00	10.00	10.00	10.00	10.00	10.00
20.0	20FA200	200	645	1290	8.57	11.24	13.63	15.83	17.89	19.84
	20FA240	240	765	1530	12.05	15.82	19.18	20.00	20.00	20.00
	20FA340	340	1065	2130	20.00	20.00	20.00	20.00	20.00	20.00
32.0	32FA200	200	645	1290	8.57	11.24	13.63	15.83	17.89	19.84
	32FA250	250	795	1590	13.02	17.08	20.71	24.05	27.18	30.14
	32FA280	280	885	1770	16.13	21.17	25.67	29.81	32.00	32.00
	32FA320	320	1005	2010	20.80	27.30	32.00	32.00	32.00	32.00

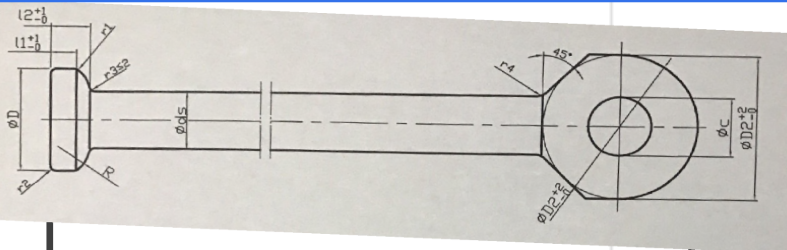

Eye Anchor

Part No.	Anchor Load Group [T]	Load Capacity [kN]	Dimensions [mm]					Qty [Per Box]
Part No.	Anchor Load Group [T]	Load Capacity [kN]	Øds	ØD	ØD2	L1	L	Qty [Per Box]
1REA065	1.3	13 kN	10	19	22	05	65	200
2REA090	2.5	25 kN	14	26	33	07	90	100
5REA120	5.0	50 kN	20	36	43	09	120	25
10REA180	10.0	100 kN	28	47	57	11	180	15
20REA250	20.0	200 kN	39	70	83	15	250	05

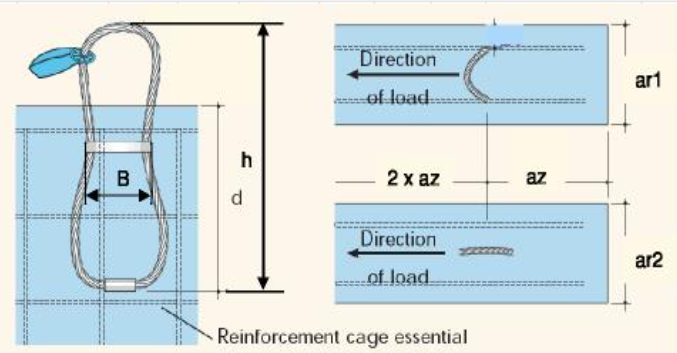

Steel Core Wire Loop

Part No.	Load [t]	Tag Color	Rope Ø φ [mm]	Loop Height h [mm]	B [mm]	Embed Depth d [mm]	Min Edge Distances [mm]			Basic Reinforcement Mesh	Additional Reinforcement
Part No.	Load [t]	Tag Color	Rope Ø φ [mm]	Loop Height h [mm]	B [mm]	Embed Depth d [mm]	az	ar1	ar2	Basic Reinforcement Mesh	Additional Reinforcement
WLSC008	0.8	Pure White	6	205	95	145	270	135	70	Q131	—
WLSC012	1.2	Fire Red	7	230	100	165	310	140	90	Q131	—
WLSC016	1.6	Pale Pink	8	250	130	180	350	170	120	Q131	—
WLSC020	2.0	White Green	9	300	135	220	420	175	100/140	Q188	8 dia 10; L1=680mm @100cc / Dia.10, 1000mm
WLSC025	2.5	Anthracite Grey	10	325	140	240	450	180	120/160	Q188	8 dia 10; L1=900mm @125cc / Dia.10, 1000mm
WLSC040	4.0	Emerald Green	12	370	165	270	500	220	120/220	Q188	8 dia 10; L1=900mm @125cc / Dia.10, 1000mm
WLSC052	5.2	Pale Yellow	14	380	180	280	520	290	140/290	Q188	8 dia 10; L1=940mm @125cc / Dia.10, 1000mm
WLSC063	6.3	Light Blue	16	425	235	310	580	320	320	Q188	—
WLSC080	8.0	Silver Grey	18	480	235	350	650	400	400	Q221	—
WLSC100	10.0	Burgundy Violet	20	535	260	395	730	440	440	Q221	—
WLSC125	12.5	Dark Yellow	22	590	280	440	810	560	560	Q221	—
WLSC160	16.0	Blue Lilac	26	670	325	500	930	620	620	Q221	—
WLSC200	20.0	Yellow Green	28	750	380	570	1060	680	680	Q377	—
WLSC250	25.0	Light Brown	32	850	400	650	1210	750	750	Q377	—
