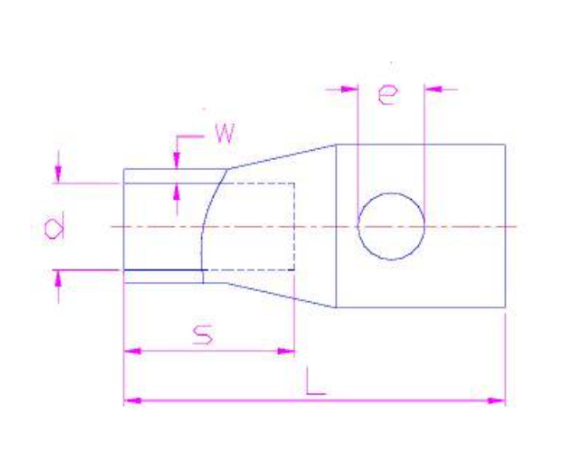

Cast In Socket — Detail

Cast In Socket

Part No.	Design Load (kN)	Dimensions
Part No.	Design Load (kN)	Thread	L	e	s⁺	k	G	B	W [kg]
CIS-6/40	2.10	M6	40	6.2	15	—	—	—	1.2
CIS-8/50	2.80	M8	50	6.2	20	—	—	—	1.5
CIS-10/55	4.90	M10	55	7.2	20	—	—	—	1.5
CIS-12/60	7.00	M12	60	7.2	20	10	300	60	2
CIS-12/80	6.16	M12	80	7.2	40	10	300	70	1.5
CIS-16/70	9.80	M16	70	9.2	20	10	300	70	2.3
CIS-16/80	11.20	M16	80	12.2	30	10	350	70	2.5
CIS-16/100	14.00	M16	100	9.2	50	10	350	70	2.5
CIS-16/120	16.80	M16	120	9.2	30	10	350	70	3
CIS-20/100	17.50	M20	95	14.2	40	12	400	80	3.5
CIS-24/120	25.20	M24	120	14.2	50	12	450	80	22.5

Metric Threaded Insert (CIM)

Metric Threaded Insert (CIM)

Part No.	Thread Size	Cross Hole Diameter	Thread Depth	Anchor Length	Qty [Per Box]
CIM10X40G	M10	8.8 / 9.2 mm	15 mm	40 mm	100
CIM12X50G	M12	9.1 / 9.5 mm	20 mm	50 mm	100
CIM16X75G	M16	11 / 11.6 mm	35 mm	75 mm	25
CIM20X75G	M20	15 / 15.5 mm	32 / 33 mm	75 mm	50
CIM20x120G	M20	—	47 mm	120 mm	20
CIM24X100G	M24	20 / 20.5 mm	45 mm	90 mm	20
316 Stainless Steel TCMs with Elephant Foot
CCM10X45SS	M10	8.4 mm	20 mm	45 mm	EA
CCM12X55SS	M12	8.4 mm	25 mm	50 mm	EA
CCM16X70SS	M16	11.0 mm	32 mm	70 mm	EA
CCM20X95SS	M20	11.0 mm	35 mm	95 mm	EA

Product Code	Char. Tensile Capacity NRk,s [kN]	Design Resistance EC2 (÷1.8) [kN]	Design Resistance AS 4100 (×0.8) [kN]
CIM1040G	30.60	17.00	24.48
CCM1040SS	33.80	18.78	27.04
CIM1250G	49.70	27.61	39.76
CCM1250SS	55.00	30.56	44.00
CIM1675G	105.80	58.78	84.64
CCM1675SS	130.50	72.50	104.40
CIM2095G	129.90	72.17	103.92
CCM2095SS	112.70	62.61	90.16
CIM24100G	23.90	128.28	184.72
CCM24100SS	256.80	142.67	205.44

Cast In Channel + T-Bolt

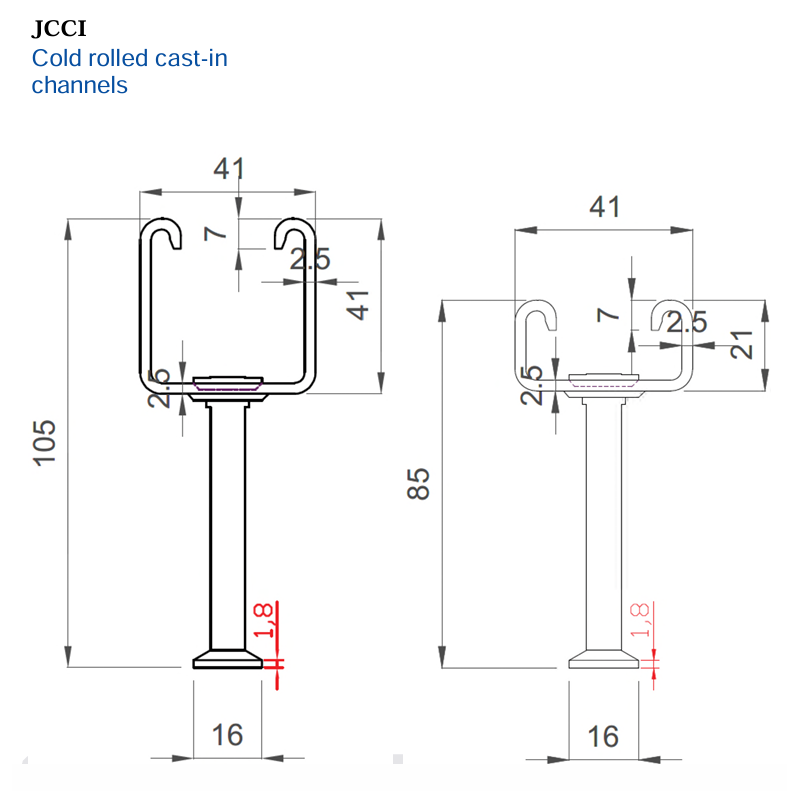

Cast In Channel — View 2

Cast In Channel — View 3

Cast In Channel + T-Bolt

Cast-In Channel Part No.	Channel Section	Load Capacity (kN) NRD=VRD Steel / SS	Channel Flexure (Nm) Steel / SS MRd,s,flex	T-Bolt Part No.	Metric Size	T-Bolt Min Spacing Sslb [mm]	Geometric Values
Cast-In Channel Part No.	Channel Section	Load Capacity (kN) NRD=VRD Steel / SS	Channel Flexure (Nm) Steel / SS MRd,s,flex	T-Bolt Part No.	Metric Size	T-Bolt Min Spacing Sslb [mm]	bch [mm]	hch [mm]	hnom [mm]	hef [mm]	cmin [mm]
JCCL-72/49	72/49	45.00 / 50.56	9868 / 6408	JTB-72	M20, M24, M30	121	72	49	182	179	150
JCCL-54/33	54/33	41.67 / 36.67	2832 / 2696	JTB-50	M12, M16, M20	80	54	33	157	155	100
JCCL-49/30	49/30	17.22 / 25.00	1646 / 1600	JTB-50	M12, M16, M20	74	49	30	96	94	75
JCCL-40/25	40/25	12.22 / 15.00	1356 / 1048	JTB-40	M10, M12, M16	64	40	25	81	79	50
JCCL-38/17	38/17	10.56 / 12.22	595 / 651	JTB-38	M10, M12, M16	47	38	17	78	76	50
JCCL-28/15	28/15	7.22 / 8.33	349 / 348	JTB-28	M8, M10, M12	41	28	15	47	45	40
JCCL-41/41	41/41	9.56	637	JTB-41	M10, M12, M16	28	41	41	105	103	50
JCCL-41/21	41/21	9.56	595	JTB-41	M10, M12, M16	28	41	21	82	82	50

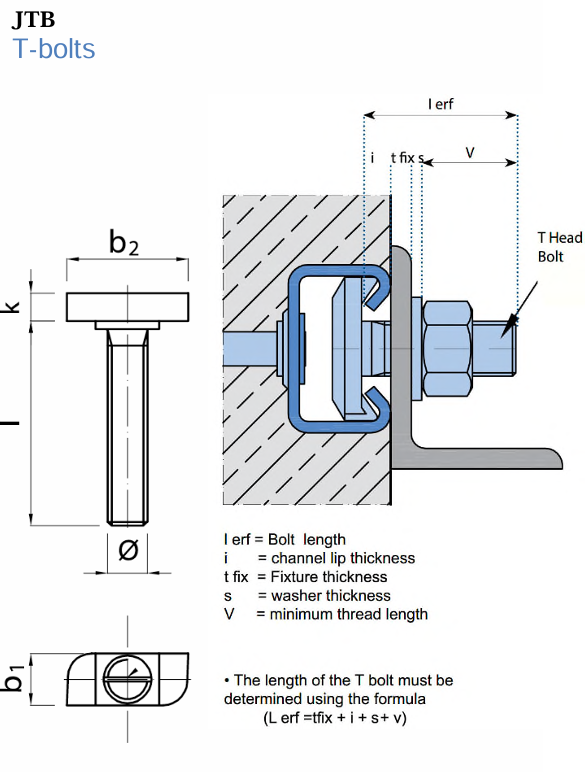

T-Bolt Geometry (JTB41)						Steel / Stainless			Stainless A4
Ø	b1	b2	k	l	Vmin [mm]	4.6 / 8.8 NRd [kN]	4.6 / 8.8 VRd [kN]	8.8 VRdl [kN]	A4 NRd [kN]	A4 VRd [kN]
M10	20	34	10	20–300	14.5	11.6 / 30.9	6.9 / 18.6	—	21.7	13.0
M12	20	34	10	20–300	17.0	16.9 / 44.9	12.1 / 27.0	7.0	31.3	18.9
M16	20	34	10	20–300	20.5	31.4 / 76.0	22.6 / 50.2	7.0	58.8	35.2

↑
